- Open Map using Map Composition tool

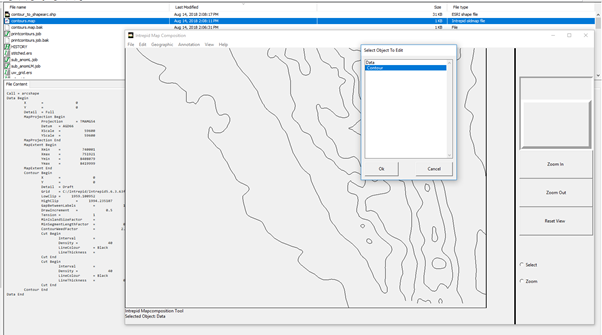

- Double click on the contours and Select “Contour” as Object to Edit.
- This will reopen the Contour dialog box
- Select Contour cuts

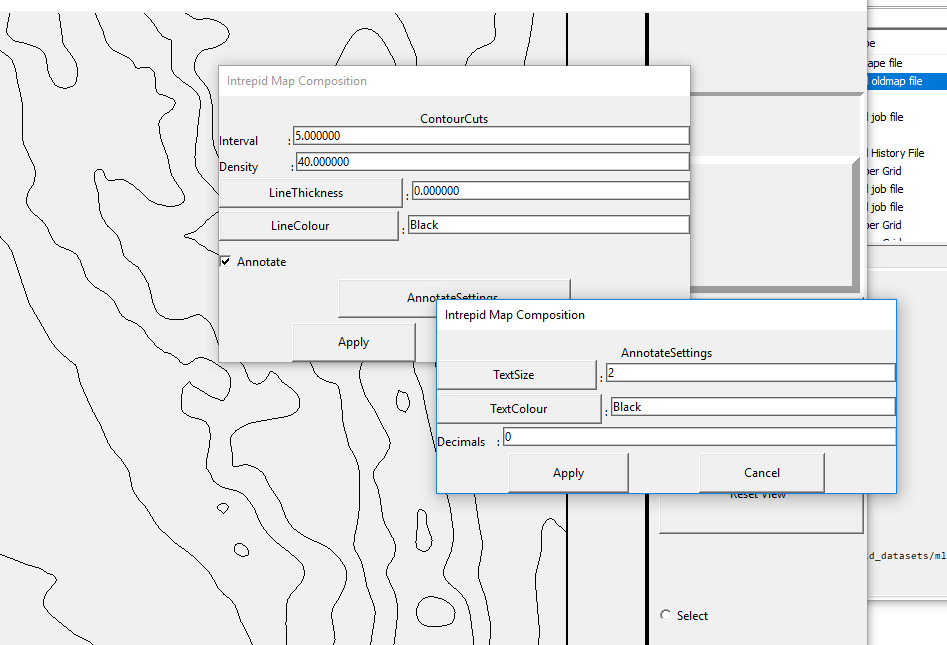

Tick Annotate and click on Annotate Settings

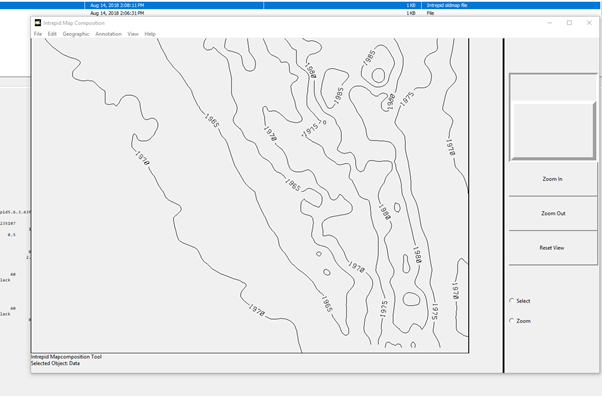

Edit Contour label parameters and click Apply - After Applying changes and refreshing the screen, contour annotations will be plotted
